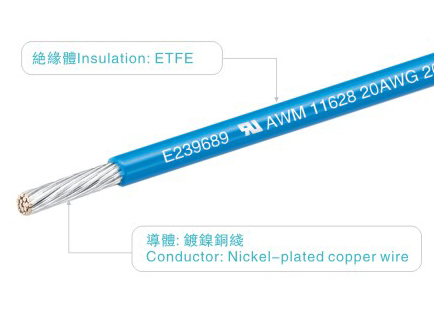

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

Name: UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications
Brand: MYSUN
Price: 1 USD

Quality UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications for sale

Model Number : UL10468

Brand Name : MYSUN

Place of Origin : Guangdong, China

MOQ : 3050

Conductor Material : Tinned Copper

Diameter : 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG

Insulation Material : Rubber

Rated Voltage : 300 V

Conductor Type : Solid

Shape : Round

Temperature : 250°C, 150 or 200℃

Voltage : 600V

Insulation : ETFE

Conductor : Tinned copper/Silver-plated copper

Unit Length : 305/1000

Max Conductor Resistance : 5.64 Ω/KM (12AWG), 8.96 Ω/KM (14AWG), 14.6 Ω/KM (16AWG)

Nominal Thickness : 0.350mm (12AWG), 0.300mm (14AWG), 0.330mm (16AWG)

Insulation Diameter : 3.05mm (12AWG), 2.55mm (14AWG), 2.16mm (16AWG)

Construction : 19/0.475 (12AWG), 19/0.37 (14AWG), 19/0.30 (16AWG)

Contact Now

UL11628 ETFE Wire 12AWG-26AWG 600V 200°C High Temperature Cable

Premium ETFE Wire Supplier for Fortune 500 Companies

UL11628 ETFE Wire with ETFE Insulation and UL758 Standard for Head Sensor Applications

Technical Specifications

Size (AWG)	Conductor Construction	Conductor Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Max Conductor Resistance (Ω/KM)	Unit Length (M/Ft)
30	7/0.10	0.30	0.270	0.84	381	610/2000
28	7/0.127	0.36	0.270	0.90	239	610/2000
26	19/0.10	0.48	0.270	1.02	150	610/2000
24	19/0.12	0.60	0.270	1.14	94.2	610/2000
22	19/0.15	0.75	0.300	1.35	59.4	305/1000
20	19/0.19	0.95	0.330	1.61	36.7	305/1000
18	19/0.235	1.17	0.330	1.83	23.2	305/1000
16	19/0.30	1.50	0.330	2.16	14.6	305/1000
14	19/0.37	1.85	0.300	2.55	8.96	305/1000
12	19/0.475	2.35	0.350	3.05	5.64	305/1000
